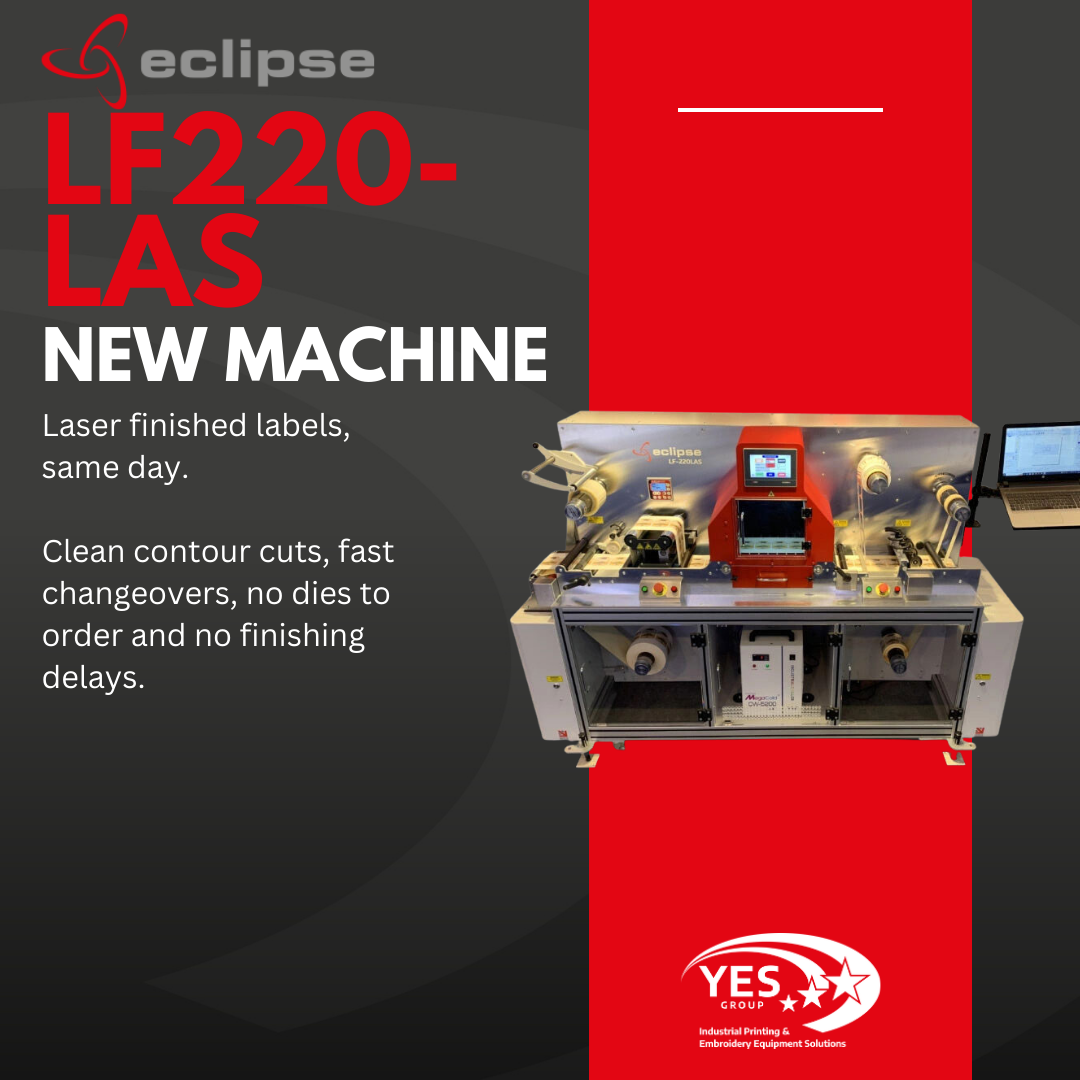

The Eclipse LF220-LAS is a roll to roll laser label finishing machine built to turn printed label rolls into finished, customer-ready output without waiting on rotary dies or outsourcing. It combines lamination, laser contour cutting, waste removal, slitting and rewinding in one integrated workflow.
Laser Accurate Finishing for Digital Label Rolls
If your label printer can keep pace but finishing is the bottleneck, the LF220-LAS helps you bring more of the process in house. With laser cutting, you can switch shapes quickly and keep production moving, even when you are running lots of short runs and variable designs.
Designed for 120 mm to 220 mm web widths, it supports through cut, kiss cut, perforation and marking, with stable tracking features that suit longer runs. It can run as an offline roll finisher, and it can also be fed inline from a compatible printer that supports external GPIO.
Machine Specifications
|
Specification
|
Details
|
|
Machine Type
|
High speed laser label finisher
|
|
Media web width
|
120 mm to 220 mm (common stocks include BOPP, paper and vinyl)
|
|
Max cutting width
|
210 mm
|
|
Max roll diameter and core
|
Up to 400 mm roll diameter on a 76 mm core
|
|
Cutting speed
|
Up to 25 m per minute
|
|
Cutting accuracy
|
+/- 0.1 mm
|
|
Cutting modes
|
Through cut, kiss cut, perforation and marking
|
|
Laser
|
CO2 laser (10.6 µm)
|
|
Laser tube options
|
Standard 200W tube, with upgrade options including ceramic core 200W or 250W |
|
Power
|
Single phase 220-240 VAC, 1000 W
|
|
Dimensions and weight
|
2,200 x 720 x 1,425 mm, 500 kg
|

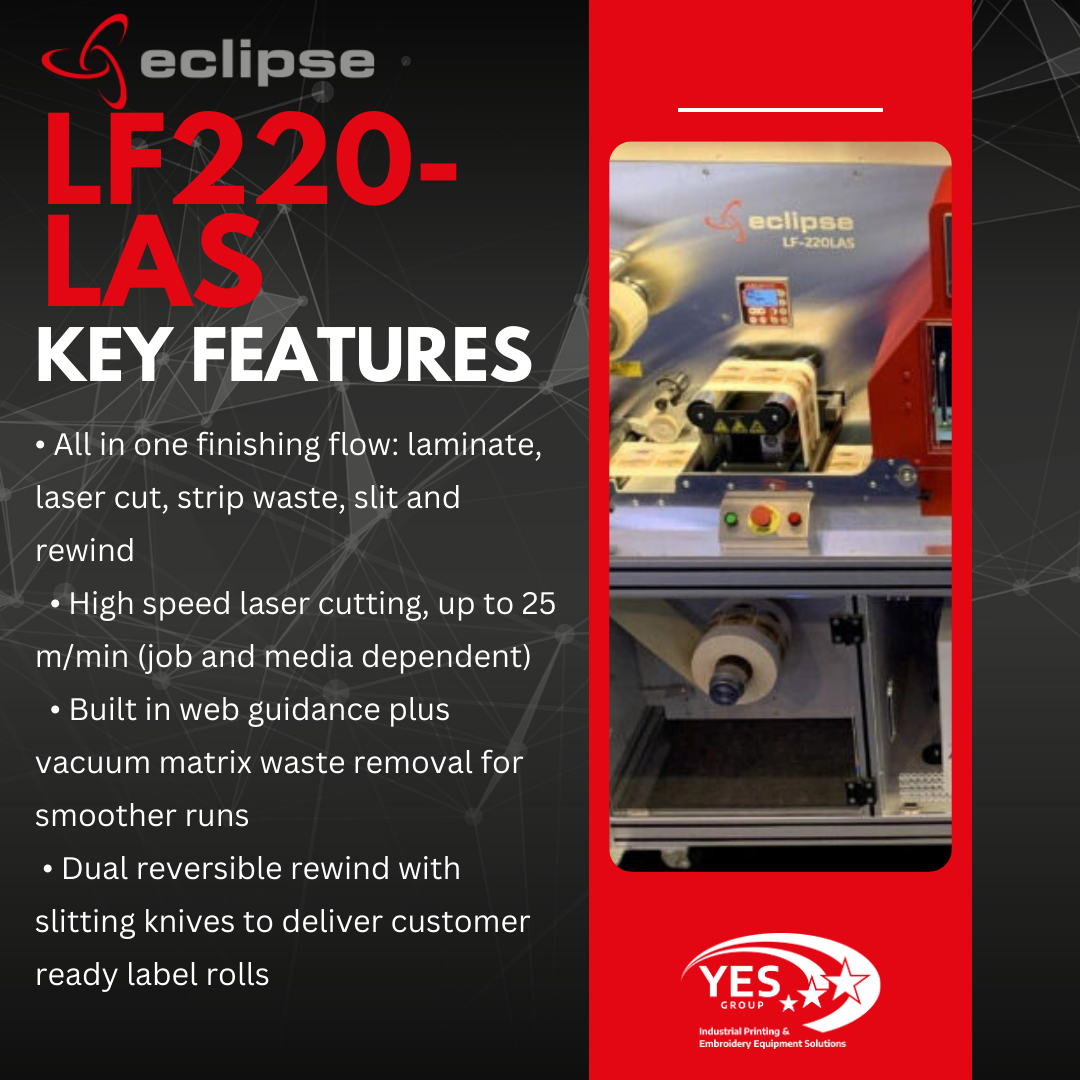

Features & Benefits
The LF220-LAS is designed to speed up finishing, improve consistency and give you more control over turnaround for digital label work:
- Complete finishing in one pass: laminate, laser cut, remove waste, slit and rewind roll to roll
- Laser contour cutting helps stop reliance on rotary dies for short runs and high SKU variety
- Supports detailed shapes and frequent artwork changes with consistent registration
- High speed capability up to 25 m per minute on suitable jobs (design dependent)
- Built in slitting and rewind flexibility so you can deliver customer-ready rolls
- Stable tracking features such as web guidance and vacuum waste edge removal help reduce manual handling
About Eclipse
Eclipse Label Finishing Equipment designs professional finishing systems for digital label production, helping businesses laminate, cut, strip and rewind labels efficiently in house. The LF220-LAS focuses on laser accuracy and fast changeovers for modern on demand label workflows.
What’s Included
When you source the Eclipse LF220-LAS through YES Group, we help you build a finishing setup that is right for your site and the materials you run:
- Eclipse LF220-LAS laser label finishing machine (configured as specified)
- UK delivery to your site
- Site planning guidance for installing a laser finishing station
- On site installation by a certified engineer
- Operator training at your site or at the YES showroom
- Support selecting the right laser tube option for your utilisation
- Guidance on extraction and cooling requirements (fume extraction is recommended for laser workflows)
- Access to UK spare parts through YES
- After installation support from the YES technical team
UK Support, Training & Finance Options
Choosing YES Group means you have UK support behind your laser finishing workflow from day one:
- UK delivery, installation options and operator training to suit your site and production needs
- UK based technical support for setup, finishing workflow questions and ongoing performance
- Guidance on site requirements such as extraction, cooling and utilities for laser finishing
- Finance options available (subject to approval)
We support you before installation, during commissioning and long after handover so you can keep finishing label rolls with confidence.
Contact Us
If you would like to talk through the LF220-LAS and the right laser tube and finishing setup for your labels, we can help you with the best configuration.
Call 01623 863343 or email sales@yesltd.co.uk to discuss your workflow or arrange a demonstration.
About YES Group
YES Group supplies commercial print and finishing equipment across the UK, supporting customers with product selection, demonstrations, installation and ongoing technical help. For label production, we focus on matching the right printer and finishing workflow to your materials, volumes and turnaround expectations, then backing it up with UK support.
