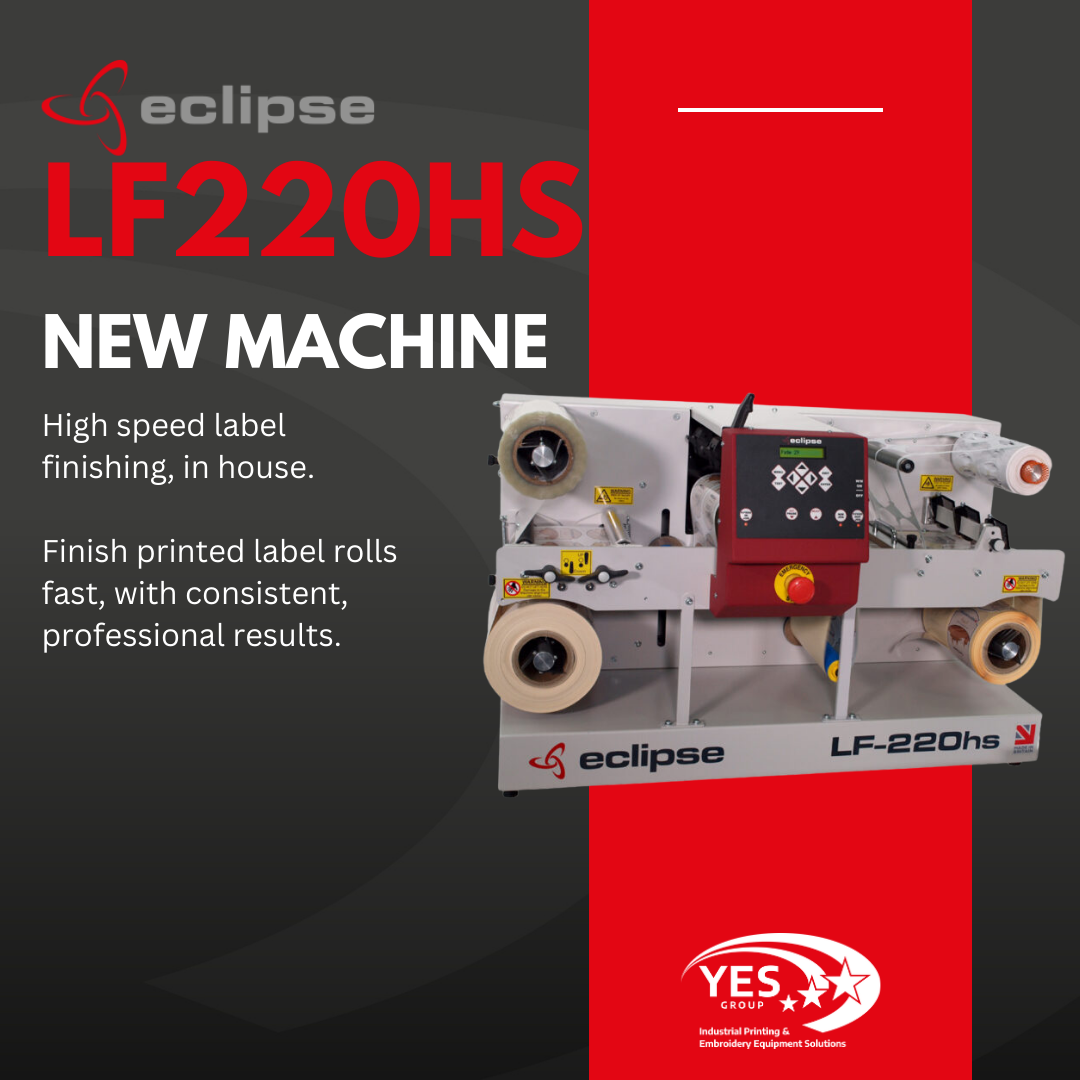

The Eclipse LF220HS High Speed Label Finisher brings professional roll to roll converting into a production ready workflow. It can laminate, contour cut, strip waste matrix, slit and rewind labels in one system, helping you move from printed media to finished rolls with less handling and more repeatability.
High Speed Digital Label Finishing Without Dies
If finishing is the bottleneck in your label process, the LF220HS is built to shorten turnaround and keep output consistent. Digital knife finishing gives you the flexibility of die free changeovers, so you can switch designs quickly and keep short runs profitable.
The LF220HS can run as an offline finisher, or it can be configured as part of an inline print to finish setup using media handling and alignment solutions such as the ACU-APF series. This helps stabilise web control and reduces stop start issues when pairing with compatible roll label printers.
Machine Specifications
|
Specification
|
Details
|
|
Machine Type
|
Digital label finisher
|
|
Media width
|
Up to 230mm
|
|
Cut width
|
Up to 220mm
|
|
Label length
|
Up to 254mm
|
|
Cut speed
|
Up to 8.5m per minute
|
|
Slitting
|
Up to 8 blade slitting and rewind
|
|
Cut type
|
Drag knife cutting with tangential emulation
|
|
Lamination
|
In line lamination station included |
|
Registration
|
Single point registration mark workflow
|
|
Workflow
|
Offline standalone finishing, inline option with media handling
|
|
Software
|
WinPlot cutter control software with CorelDRAW and Adobe Illustrator plug ins
|

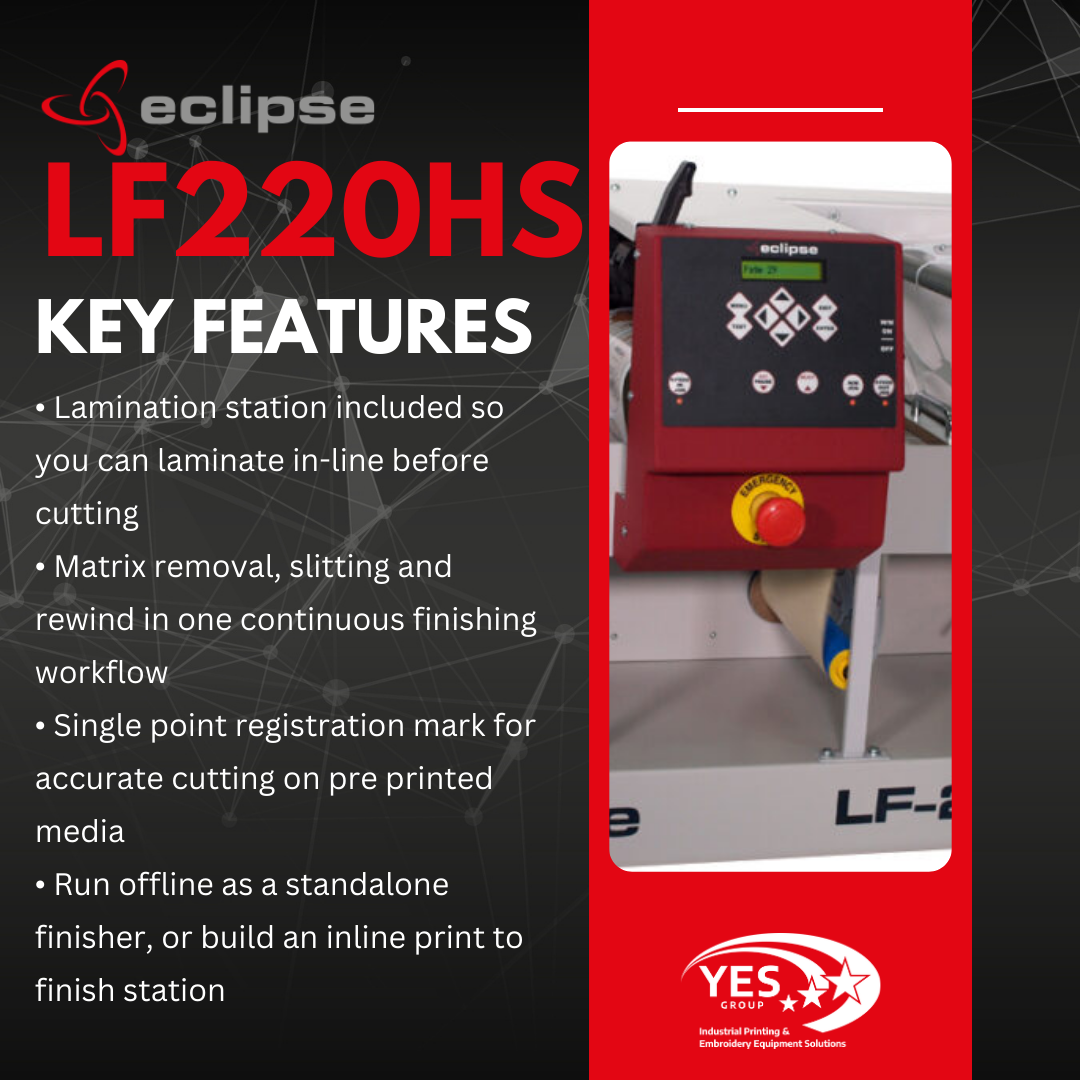

Features & Benefits
The LF220HS is built to speed up short run label finishing, improve consistency and reduce wasted handling between print and finished rolls:
- Finish laminated, cut, slit and rewound rolls the same day you print
- Keep short runs flexible with digital contour cutting and fast changeovers
- Reduce manual steps by combining matrix removal, slitting and rewind in one workflow
- Improve repeatability on re orders with controlled registration mark cutting
- Support higher output finishing for growing label demand without die tooling
- Choose offline finishing or move to inline production as volume increases
About Eclipse
Eclipse Label Finishing Equipment develops production ready systems for digital label converting. The LF220HS is designed for businesses that need faster throughput and dependable finishing, combining lamination, contour cutting and roll handling functions in a compact workflow that supports short runs and repeat jobs.
What’s Included
When purchasing the Eclipse LF220HS from YES Group, your package is designed to help you set up a reliable finishing workflow:
- Eclipse LF220HS High Speed Label Finisher
- UK delivery to your site
- On site installation by a certified engineer
- Operator training at your site or at the YES showroom
- 12 month warranty as standard
- Access to UK spare parts through YES
- Workflow guidance for lamination, registration cutting and slitting setups
- Support configuring offline finishing or an inline printer to finisher workflow
UK Support, Training & Finance Options
Choosing YES Group means you have UK support behind your label finishing workflow from day one:
- UK delivery, installation options and operator training to match your site and workflow
- UK based technical support for setup, media handling and finishing questions
- Access to spare parts held in the UK through YES
- Finance options available (subject to approval)
We are here before, during and after installation to help you get consistent results from your Eclipse LF220HS.
Contact Us
If you would like help choosing the right finishing setup for your labels, our team is happy to advise.
Call 01623 863343 or email sales@yesltd.co.uk to discuss your requirements and book a demonstration.
About YES Group
YES Group supplies commercial print and finishing equipment across the UK, including label printers and finishers. We buying our machines we help you match the right system to your volumes and materials, then support you with installation, training resources and UK based technical support so production stays reliable as you grow.
