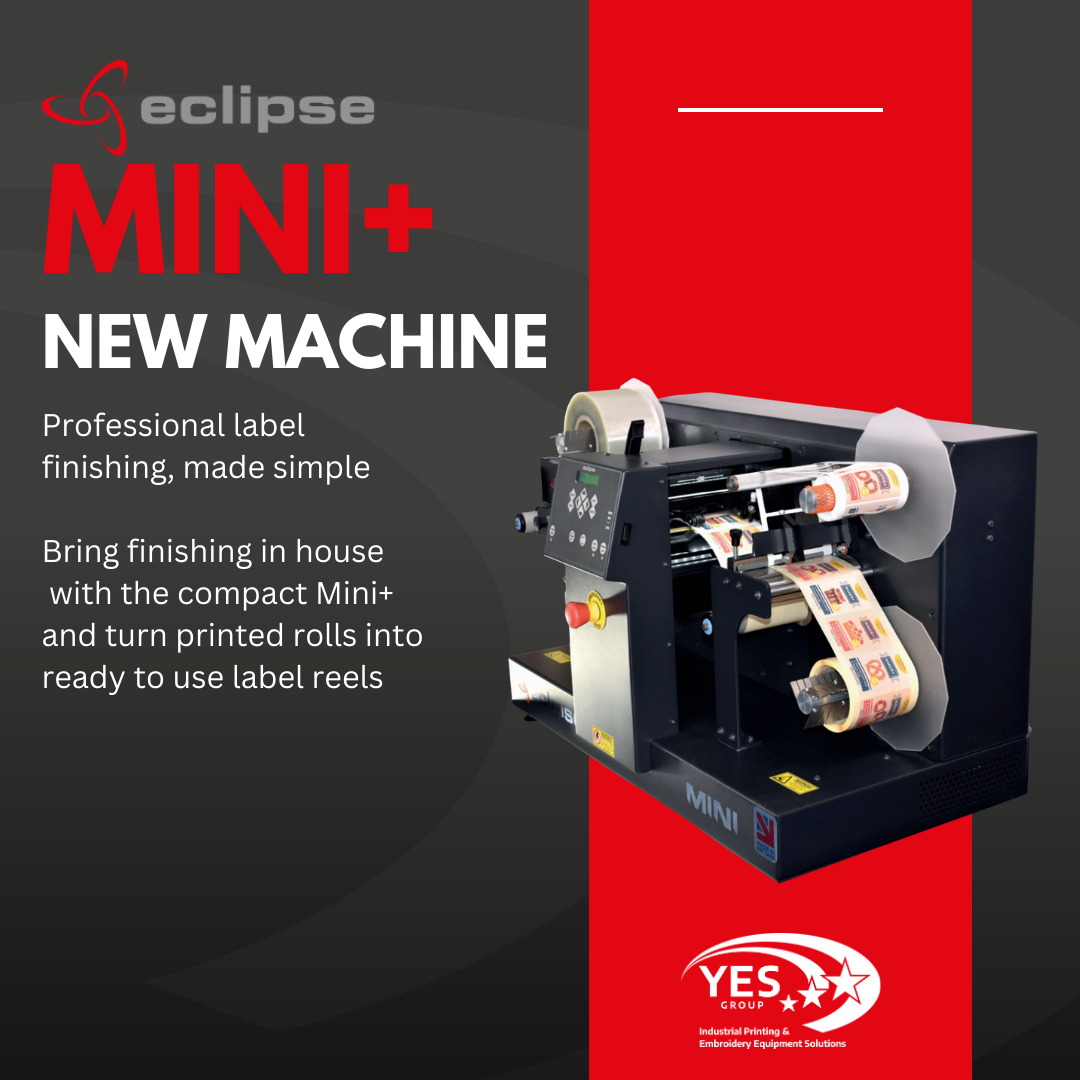

The Eclipse Mini+ Digital Label Finisher brings professional roll to roll label converting into a compact workspace. In one streamlined process it can laminate (optional), kiss cut to shape with a digital knife, strip and rewind waste matrix, slit finished rolls and rewind labels onto cores, helping you keep turnaround tight without investing in large converting equipment.
Finish Labels In House Without Dies
If your label printer can keep pace but finishing is slowing you down, the Mini+ helps you take control of the last stage. You can move from printed roll to finished, rewound label rolls with fewer delays, less outsourcing and no die tooling costs.
The offline approach lets you print when it suits you, then finish later in batches. If you want an in-line print and finish workflow, the Mini+ can be paired with an ACU-01 accumulator and a compatible label printer to keep web tension stable and production consistent.
Machine Specifications
|
Specification
|
Details
|
|
Machine Type
|
Digital label finisher
|
|
Media width
|
Up to 220mm
|
|
Cut speed
|
Up to 800mm per second
|
|
Cut force
|
0 to 400g in 1g steps
|
|
Max roll diameter
|
200mm
|
|
Rewind core size
|
76mm
|
|
Roll slitting
|
3 blade slitting and rewind
|
|
Cutting method
|
Digital knife kiss cutting to shape |
|
Lamination
|
Optional cold lamination
|
|
Workflow
|
Offline roll finishing, in-line option with ACU-01 and printer
|
|
Waste matrix
|
Removal with waste rewind
|

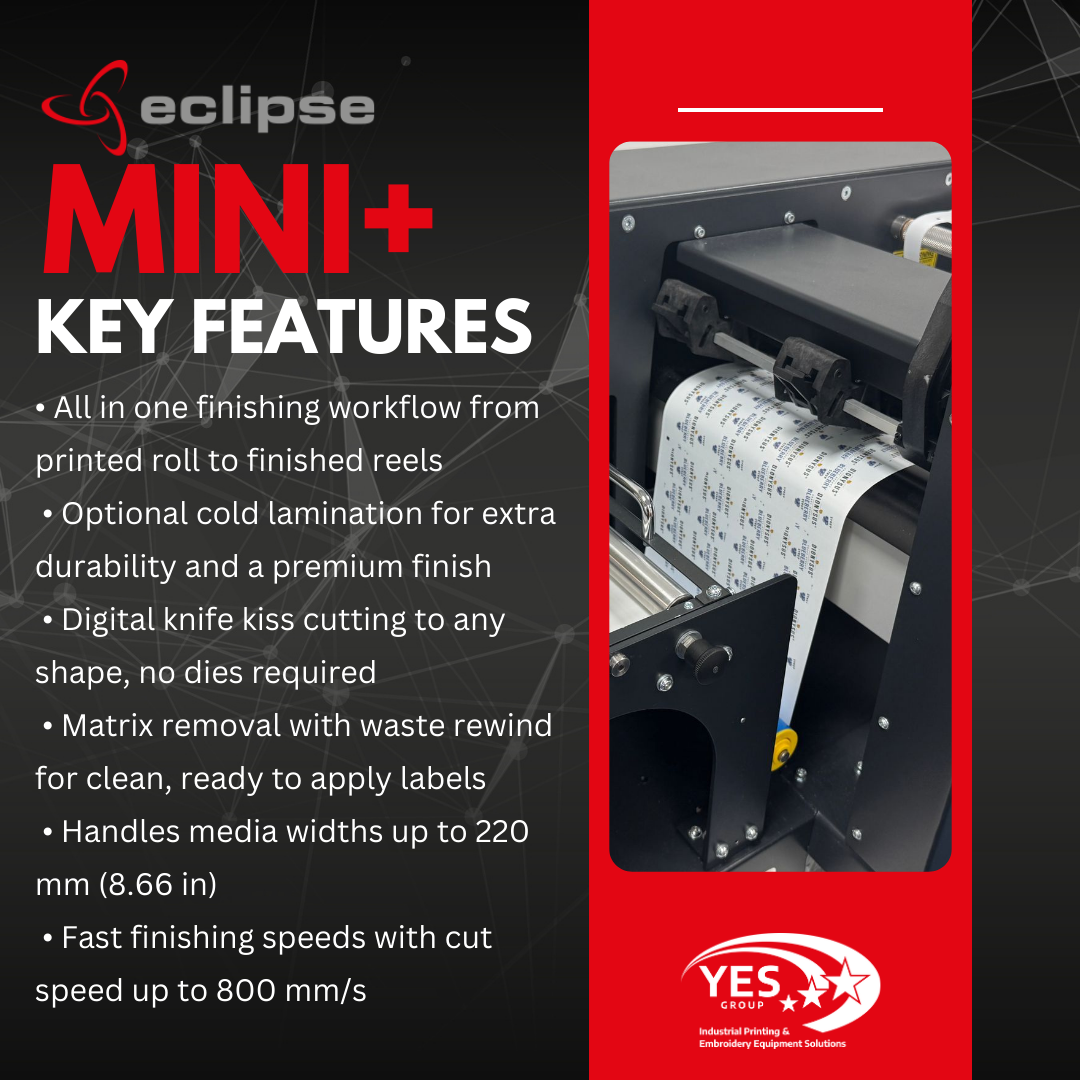

Features & Benefits
The Eclipse Mini+ is built to speed up label finishing, reduce outsourced costs and help you respond faster to new label requirements:
- Bring finishing in house to cut lead times and avoid die tooling costs
- Switch label shapes and sizes quickly with digital knife cutting
- Create professional rolls with matrix removal, slitting and rewind in one workflow
- Finish short runs and SKU variety efficiently, ideal for frequent changes
- Keep production flexible with offline finishing that fits around your print schedule
- Make daily setup easier with touchscreen control and repeatable position indicators
About Eclipse
Eclipse Label Finishing Equipment develops compact, production ready solutions for digital label converting. The Mini+ is designed for businesses that want professional roll finishing without the space, complexity or investment of larger converting lines, supporting short run output, quick changeovers and dependable day to day operation.
What’s Included
When purchasing the Eclipse Mini+ from YES Group, your package is designed to help you start finishing confidently:
- Eclipse Mini+ Digital Label Finisher
- UK delivery to your site
- On site installation by a certified engineer
- Full operator training at your site or at the YES showroom
- 12 month parts and labour warranty as standard
- Access to UK spare parts through YES
- Guidance on media loading, setup and repeat job settings
- Support pairing the Mini+ with your label printer and offline workflow
UK Support, Training & Finance Options
Choosing YES Group means you have UK support behind your label finishing workflow from day one:
- UK delivery, installation and operator training
- UK based technical support for setup, materials and finishing questions
- Access to spare parts held in the UK through YES
- Finance options available (subject to approval)
We are here before, during and after installation to help you get consistent results from your Eclipse Mini+.
Contact Us
If you would like help choosing the right label finishing setup for your workflow, our team is happy to advise.
Call 01623 863343 or email sales@yesltd.co.uk to discuss your requirements and book a demonstration.
About YES Group
YES Group supplies commercial print and finishing equipment across the UK, including label printers and finishers. We help you match the right system to your volumes and materials, then support you with installation, training resources and UK based technical support so production stays reliable as you grow.
