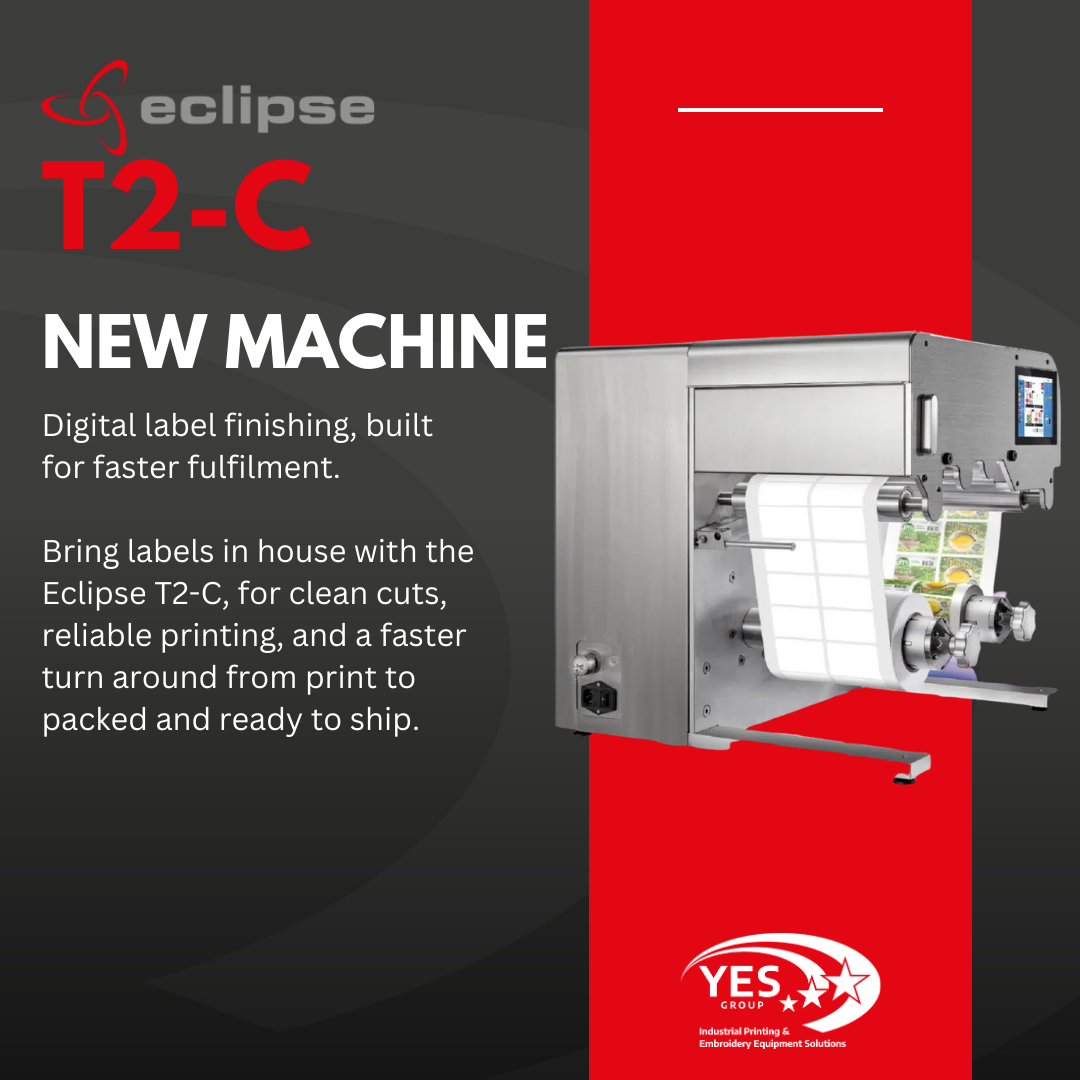

The Eclipse T2-C is a high volume tabletop colour label press built to deliver consistent output across long runs, with the control and precision you would expect from a larger production press.
Full Capacity Label Printing in a Tabletop Footprint
Designed for 24/7 production, the T2-C combines fast print speeds with high resolution so you can produce professional labels without the footprint and running costs of a full-size press. The 2-litre CMYK ink tanks support longer runs and help keep changeovers and per-label cost under control.
For workflow flexibility, the T2-C can print onto pre-die cut blanks or run continuous material, with media sensing options to suit different stocks. Integrated tension control supports accurate image placement, and the built-in slitting station can split output into multiple lanes for quicker handling on die-cut jobs. Remote diagnostics plus automatic maintenance and aerosol extraction help minimise downtime during daily production.
Machine Specifications
|
Specification
|
Details
|
|
Machine type
|
High volume tabletop colour label press
|
|
Print Resolution
|
1600 x 800 dpi or 1600 x 1600 dpi
|
|
Print Speed
|
6 ips or 12 ips (up to 60 ft per minute)
|
|
Ink System
|
High performance water-based dye ink, four 2-litre CMYK tanks
|
|
Print Area
|
Width: 8.8 inch (223 mm). Length: unlimited with stitching
|
|
Label Width
|
1.9 to 9.8 inch (50 to 250 mm)
|
|
Label Length (Die-cut)
|
0.6 to 60 inch (15 to 1525 mm)
|
|
Media Thickness
|
4 pt/mil to 12 pt/mil
|
|
Media Sensors
|
Optical tracking edge sensor plus gap, black mark and continuous |
|
Slitting Station
|
3 slitter blades included. Up to 7 blades can be installed (not for continuous media)
|

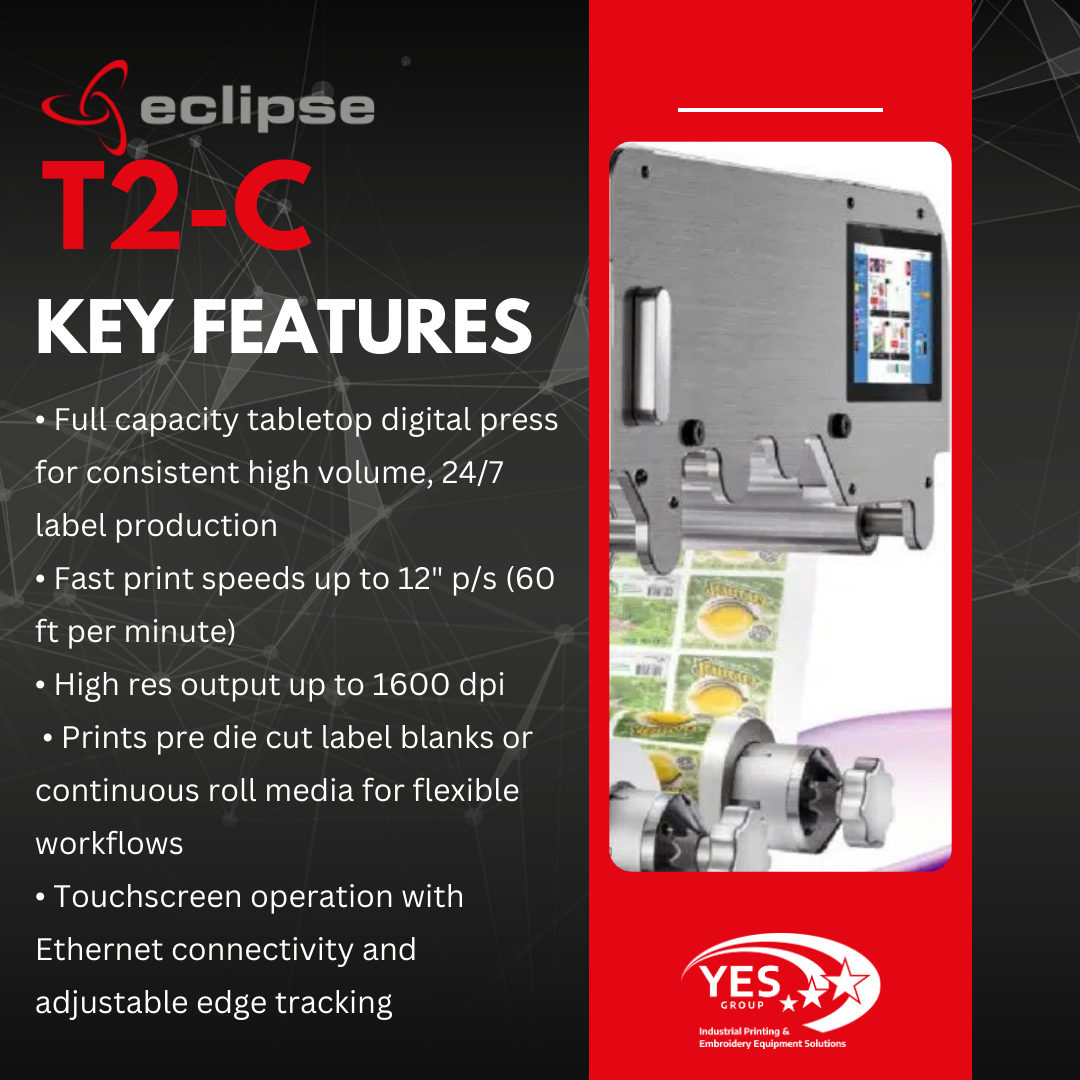

Features & Benefits
The Eclipse T2-C is built to keep label production moving with less operator input and less waste:
- Print directly on pre-die cut blanks with accurate image placement, reducing secondary finishing
- Increase throughput with speeds up to 12 ips for time-sensitive jobs
- Run longer jobs with fewer interruptions thanks to 2-litre CMYK ink tanks
- Maintain steady registration using servo-driven tension control and web guiding
- Split output into multiple lanes using the inline slitting station for die-cut media
- Reduce downtime with automatic maintenance, aerosol extraction and remote diagnostics
About Eclipse
Eclipse Label Equipment designs and manufactures label and narrow web production equipment in the UK. Founded in 1995 and family-run, Eclipse focuses on practical engineering that helps print teams improve turnaround times, reduce waste, and bring more of the label workflow in-house with reliable, production-ready systems.
What’s Included
When purchasing the Eclipse T2-C from YES Group, your package can include:
- T2-C High Volume Tabletop Label Press
- Delivery to Mainland UK
- Trojan Control Software
- Operator training on loading, sensors, job setup and slitting configuration
- Advice on optional unwind, rewind and inline integration accessories
- UK-based technical support through YES Group
- 1 year Manufacturers Warranty (excluses wear parts and supplies)
- Ongoing help as your label range and production needs grow
UK Support, Training & Finance Options
Buying from YES Group means you are supported in the UK from day one:
- Practical advice on setup, media, and workflow best practice
- Demonstrations available on request
- UK-based technical support for troubleshooting and upkeep
- Finance options available (subject to approval)
We are here before and after installation to help you plan the right workflow, maintain print quality, and keep production running smoothly.
Contact Us
If you would like help choosing the right setup for your products, our team is happy to advise.
Call 01623 863343 or email sales@yesltd.co.uk to discuss your requirements and book a demonstration.
