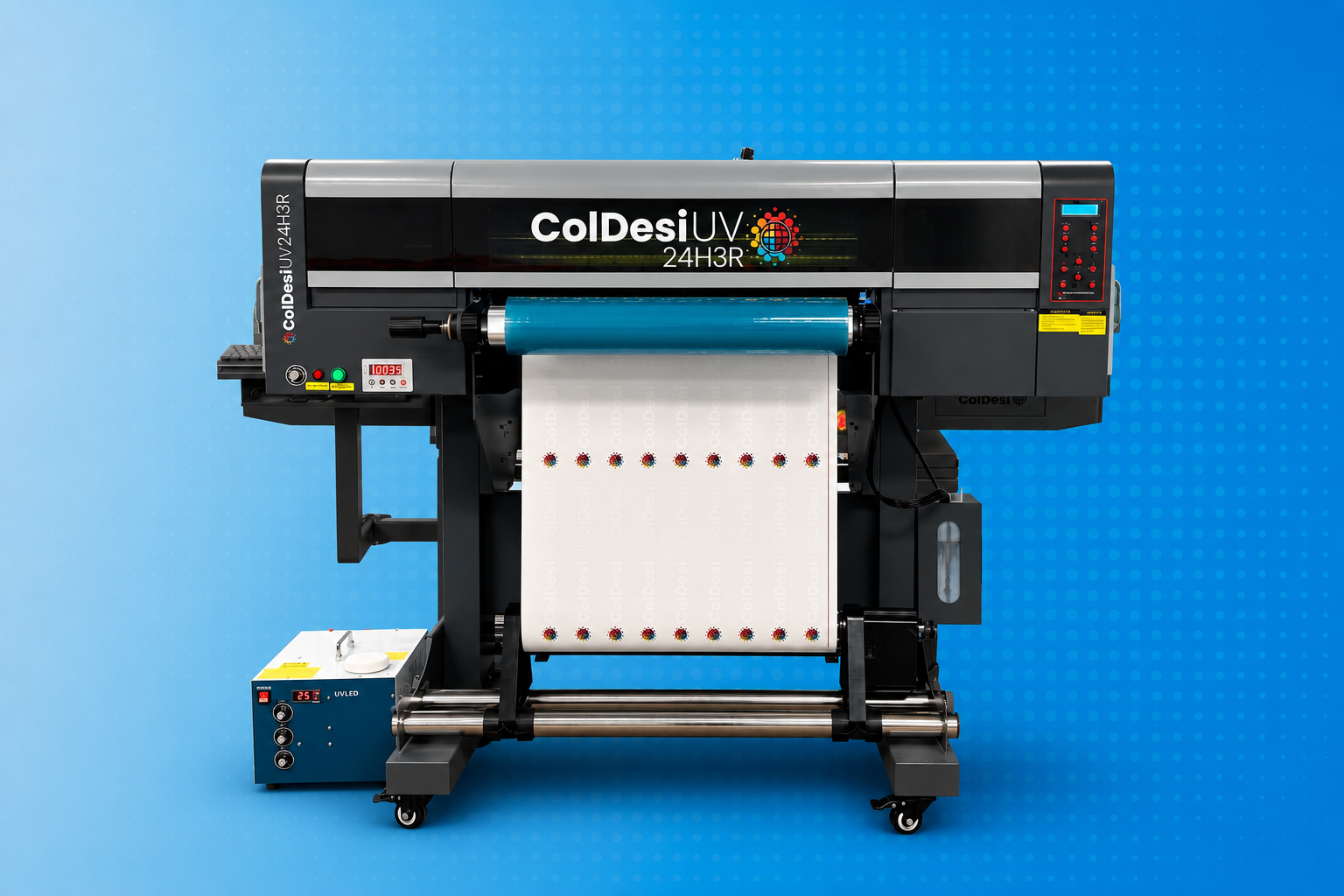

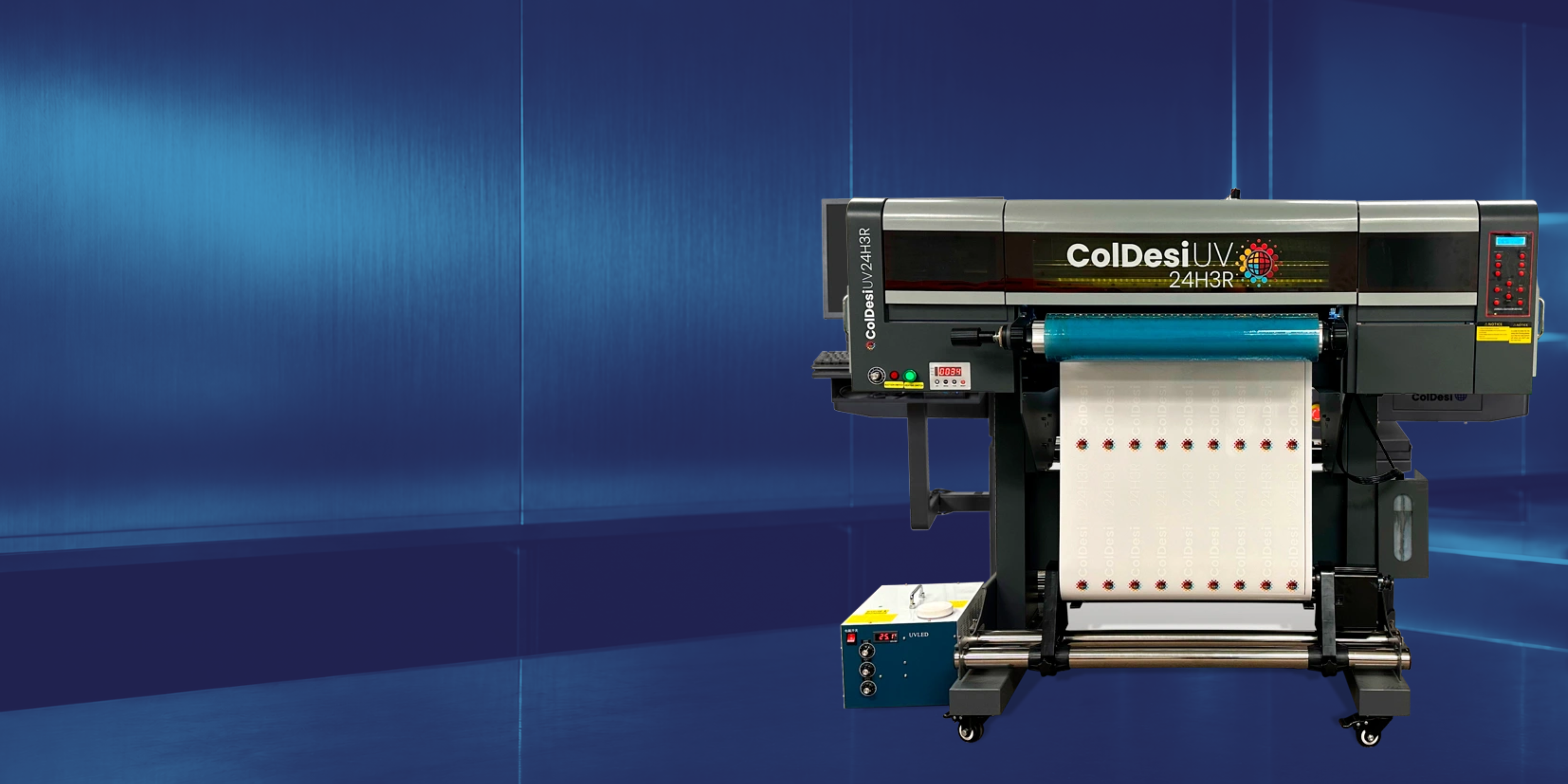

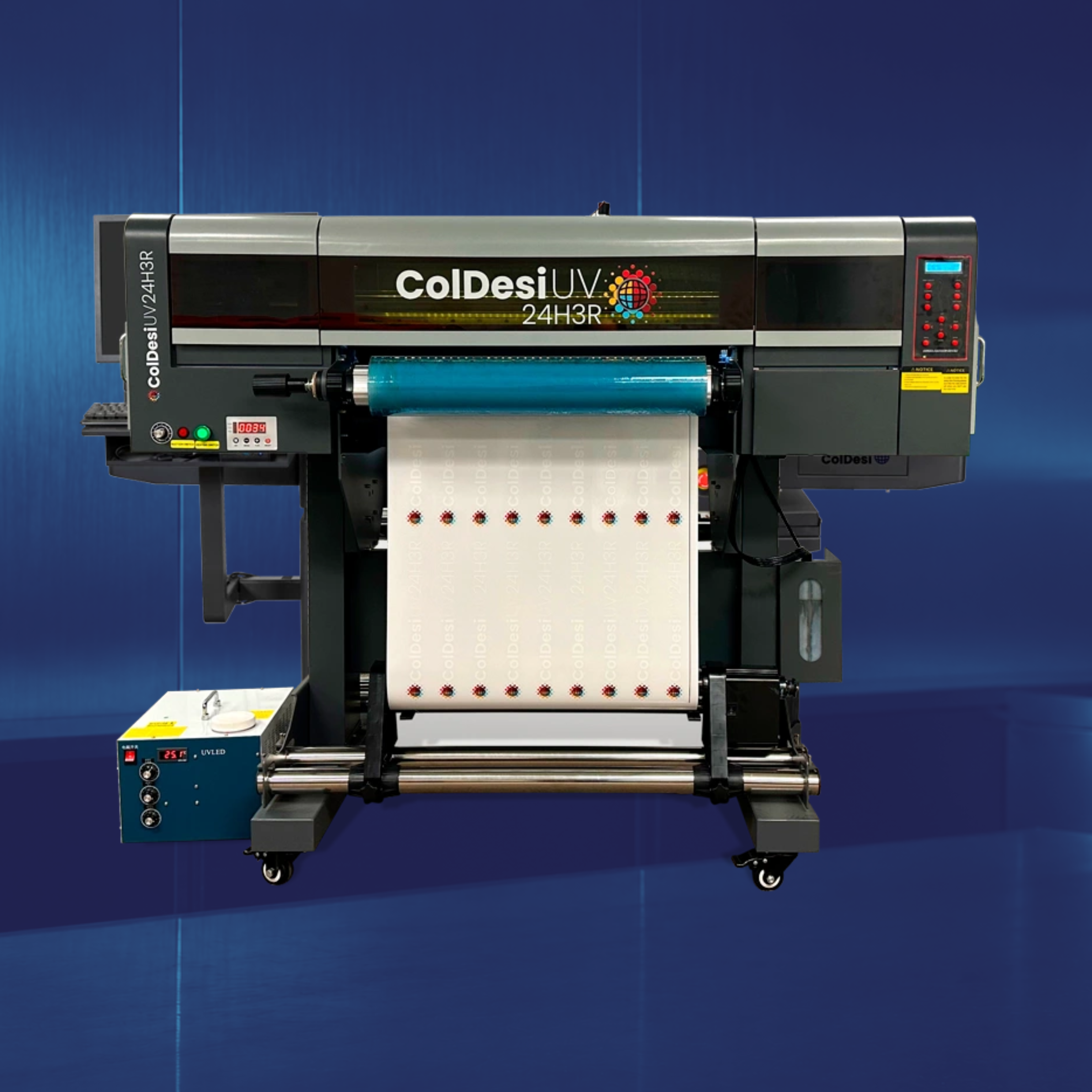

The ColDesi 24H3R is a roll-fed UV DTF printer designed to produce premium adhesive decal transfers for hard surfaces. It combines full colour output with white and clear support, then finishes the transfer with an integrated lamination workflow. With a streamlined print to apply process, it is built for businesses that want consistent results, fast turnaround, and a clean, professional finish.
Print, Cure, and Finish in One Production Workflow

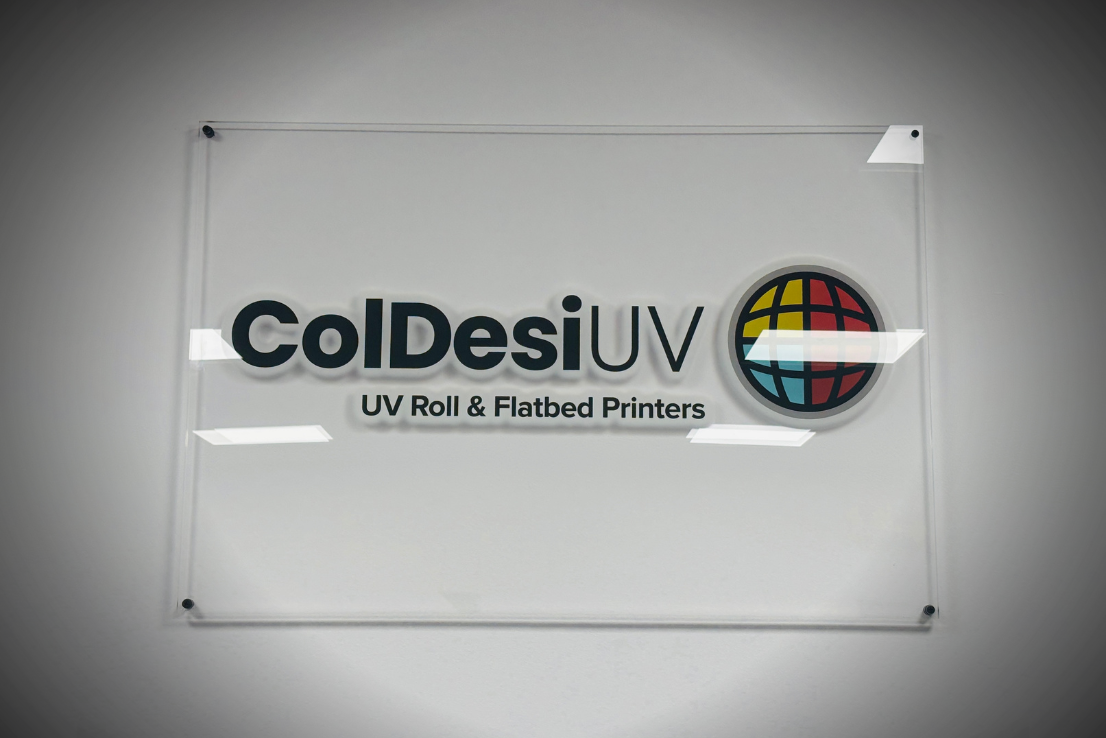

UV DTF is a practical way to add full colour graphics to hard goods without direct-to-object printing. Transfers can be applied to a wide range of surfaces, including curved items and awkward shapes, making it ideal for drinkware, packaging, product branding, and promotional goods.
The UV process supports fast turnaround, while the integrated lamination stage helps protect the printed layer and improve handling. The roll-fed workflow suits repeat production and bulk orders, helping keep output consistent across daily work.
Machine Specifications
|
Specification
|
Details
|
|
Machine Type
|
Roll-fed UV DTF printer
|
|
Print Width
|
Up to 600 mm
|
|
Printheads
|
3 printheads
|
|

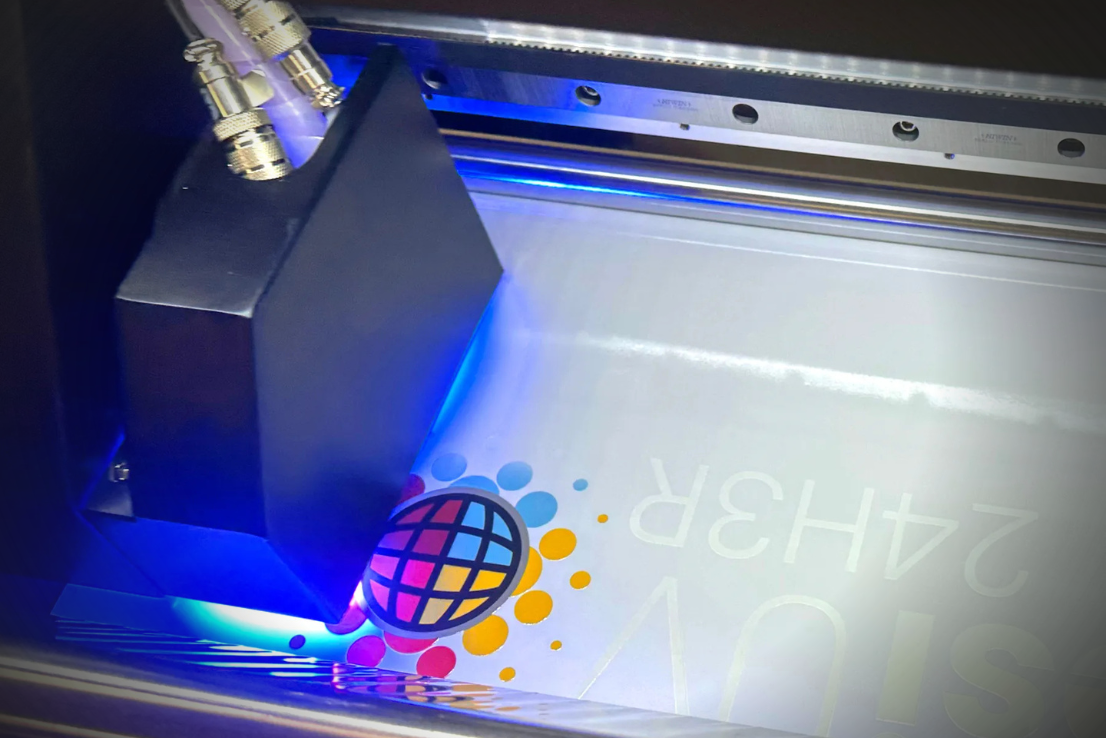

Print Head
|
3 × I3200 UI printheads
|
|
Ink Configuration
|
CMYK plus White & Clear
|
|
Curing
|
UV curing
|
|
Speed
|
2.79 square meters per hour (30 square ft per hour)
|
|
Dimensions & Weight
|
(L x W x H) 1600mm x 900mm x 1300mm / 63" x 35.5" x 51.25"
397 lbs. | 180 kgs
|
|
Warranty
|
2 years parts & labour (subject to yearly servicing)
|
Features & Benefits
The ColDesi 24H3R is designed to deliver premium decals with a faster, more repeatable workflow:
- CMYK plus white plus clear output to support strong colour, improved coverage, and premium decal effects
- UV curing for quicker turnaround and steadier production flow
- Integrated lamination to help protect the transfer layer and improve handling

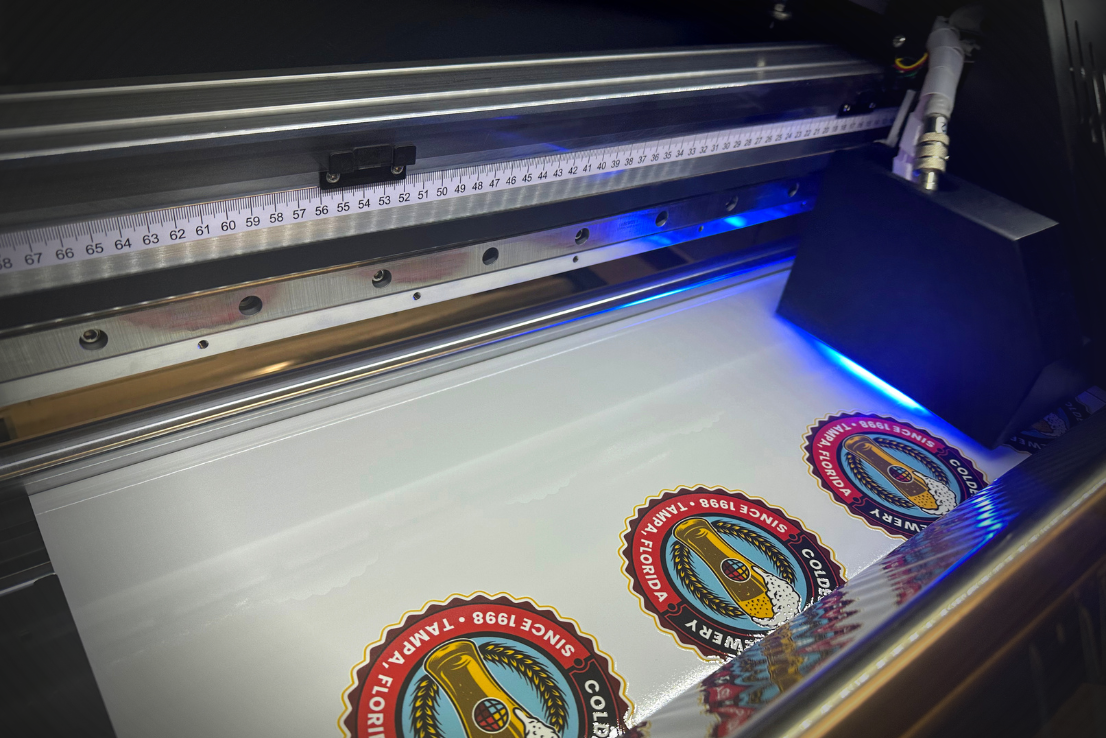

- Roll-fed workflow for repeat jobs, bulk orders, and efficient gang layouts
- No weeding or masking, reducing manual steps between print and application
- Up to 600 mm print width for larger decals and better film utilisation
About ColDesi
ColDesi supplies professional print and garment decoration systems designed for production workflows. Its UV and DTF ranges are built to help businesses bring profitable customisation in house, improve turnaround control, and maintain consistent results across daily output.
What’s Included
Your ColDesi UV DTF setup is configured to match your workflow requirements. Typical packages can include:
- ColDesi UV DTF 24H3R printer and integrated finishing workflow
- Setup guidance for decal production and application best practice
- UK delivery to your site
- Installation and operator training options
- Ongoing UK-based technical support from YES Group
- Warranty provided as standard
UK Support, Training & Finance Options
YES Group provides UK-based support, training, and ongoing guidance to help you run UV DTF production with confidence including:
- UK-based technical support and after-sales backup
- Straight-talking advice from UV print specialists before you buy

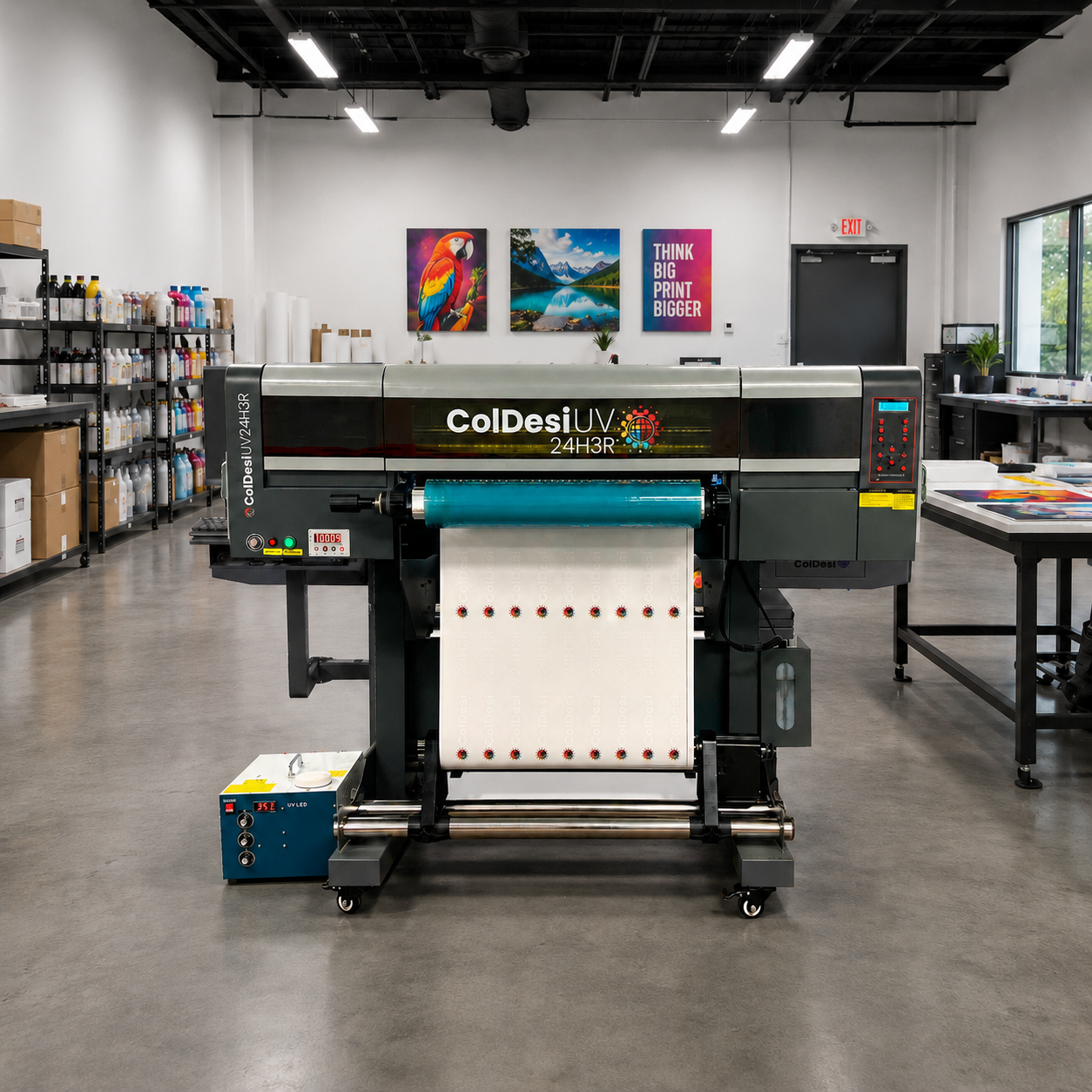

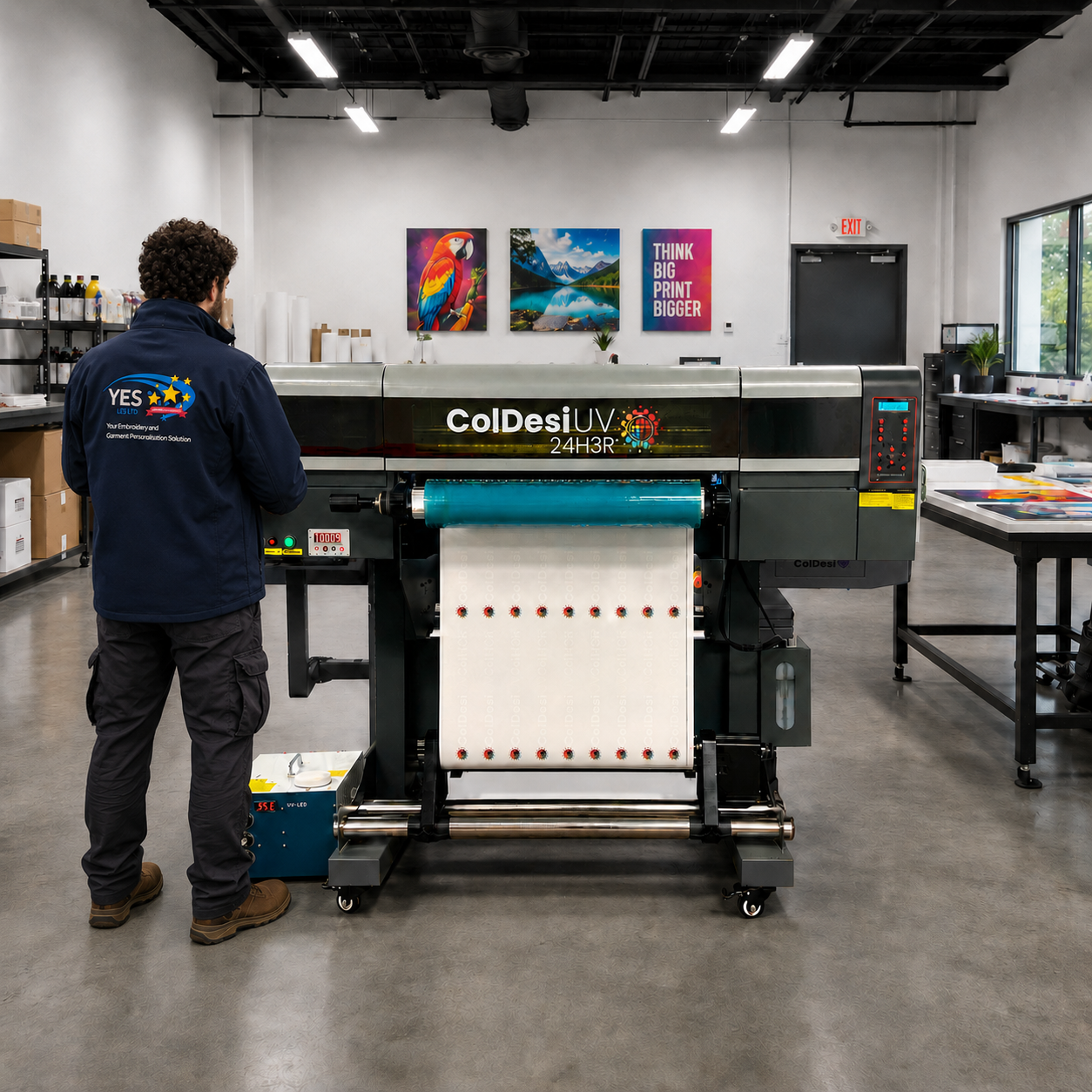

- On-site installation and training to get production running smoothly
- Flexible finance options through third parties (subject to approval)
We support you before, during and after purchase to help you scale with confidence
Contact Us
If you would like advice on UV DTF workflows, decal applications, and the right setup for your production goals, we are here to help.
Call 01623 863343 or email sales@yesltd.co.uk to discuss the ColDesi UV DTF 24H3R.
About YES Group
YES Group supplies and supports professional print, garment decoration, and finishing equipment across the UK. With practical setup guidance, operator training, and UK-based support, we help businesses build production workflows that perform day after day.
