New UV Printer | ColDesi UV500H3F

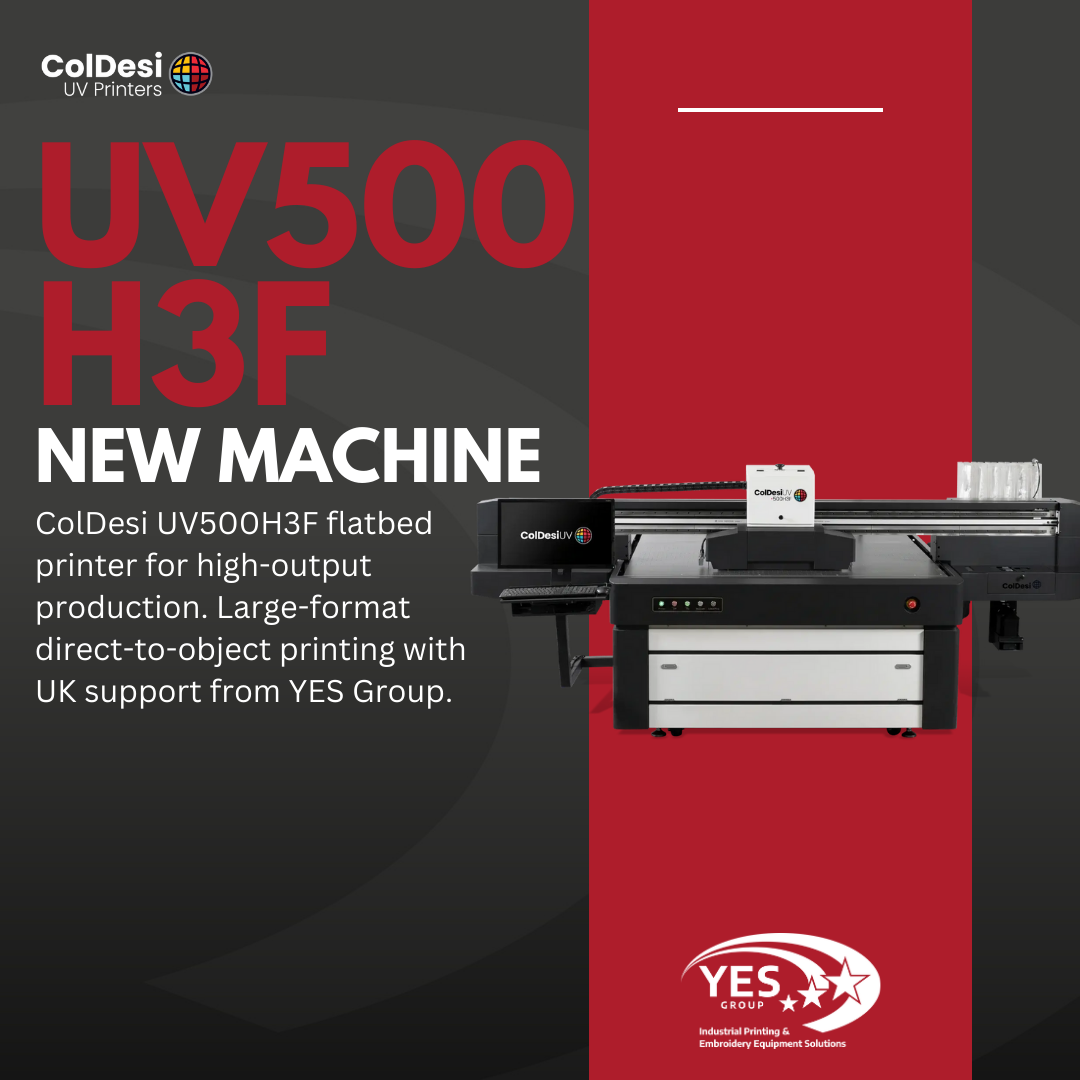

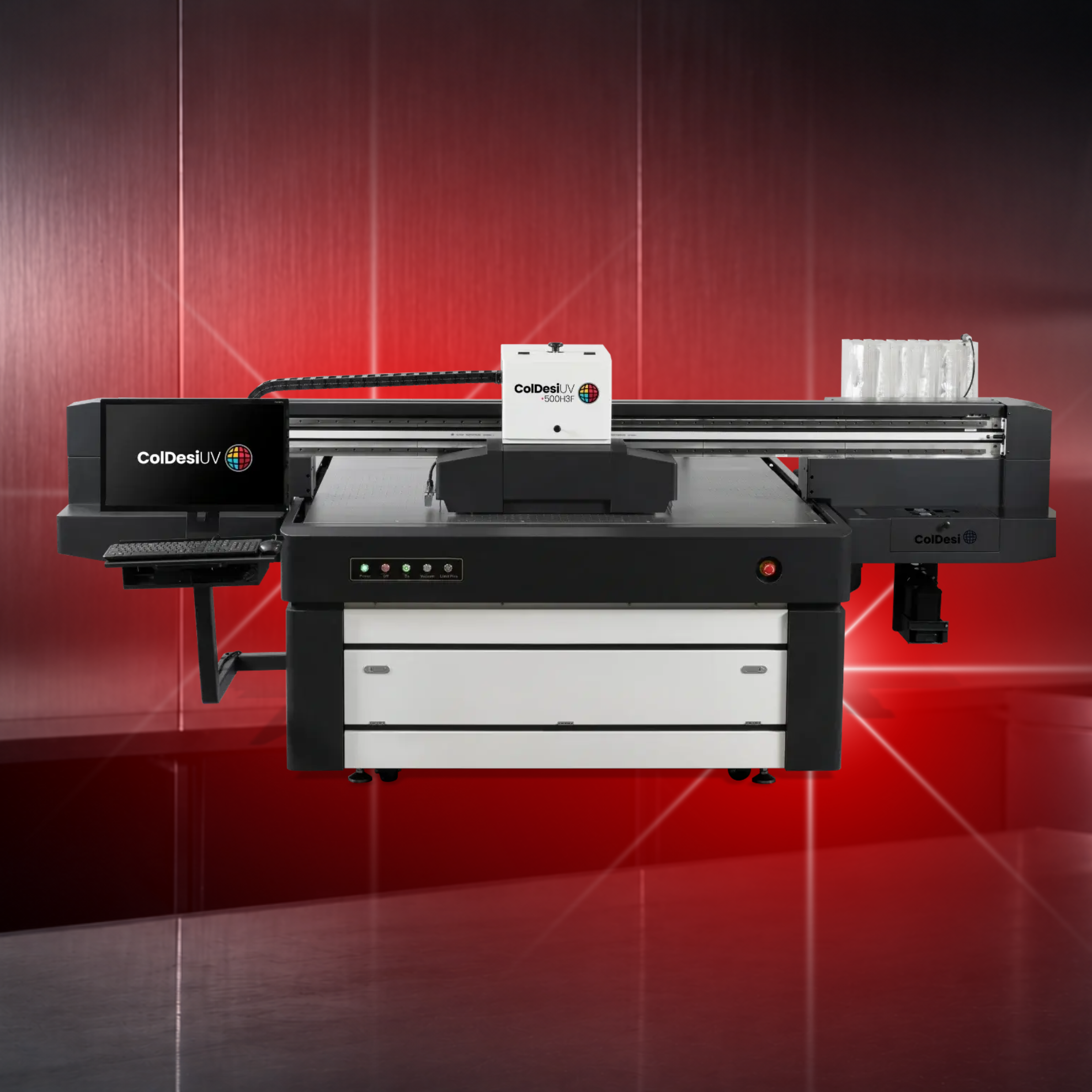

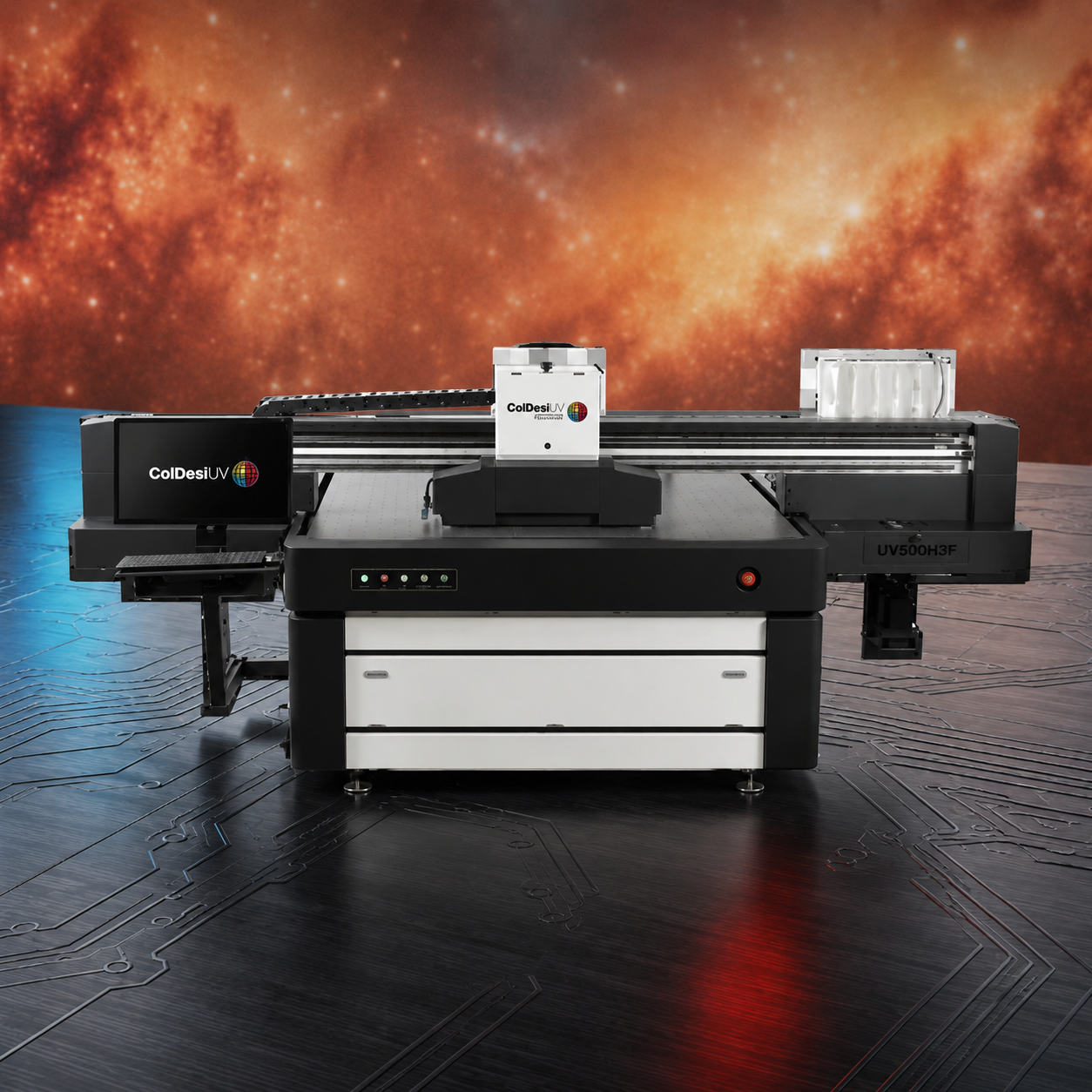

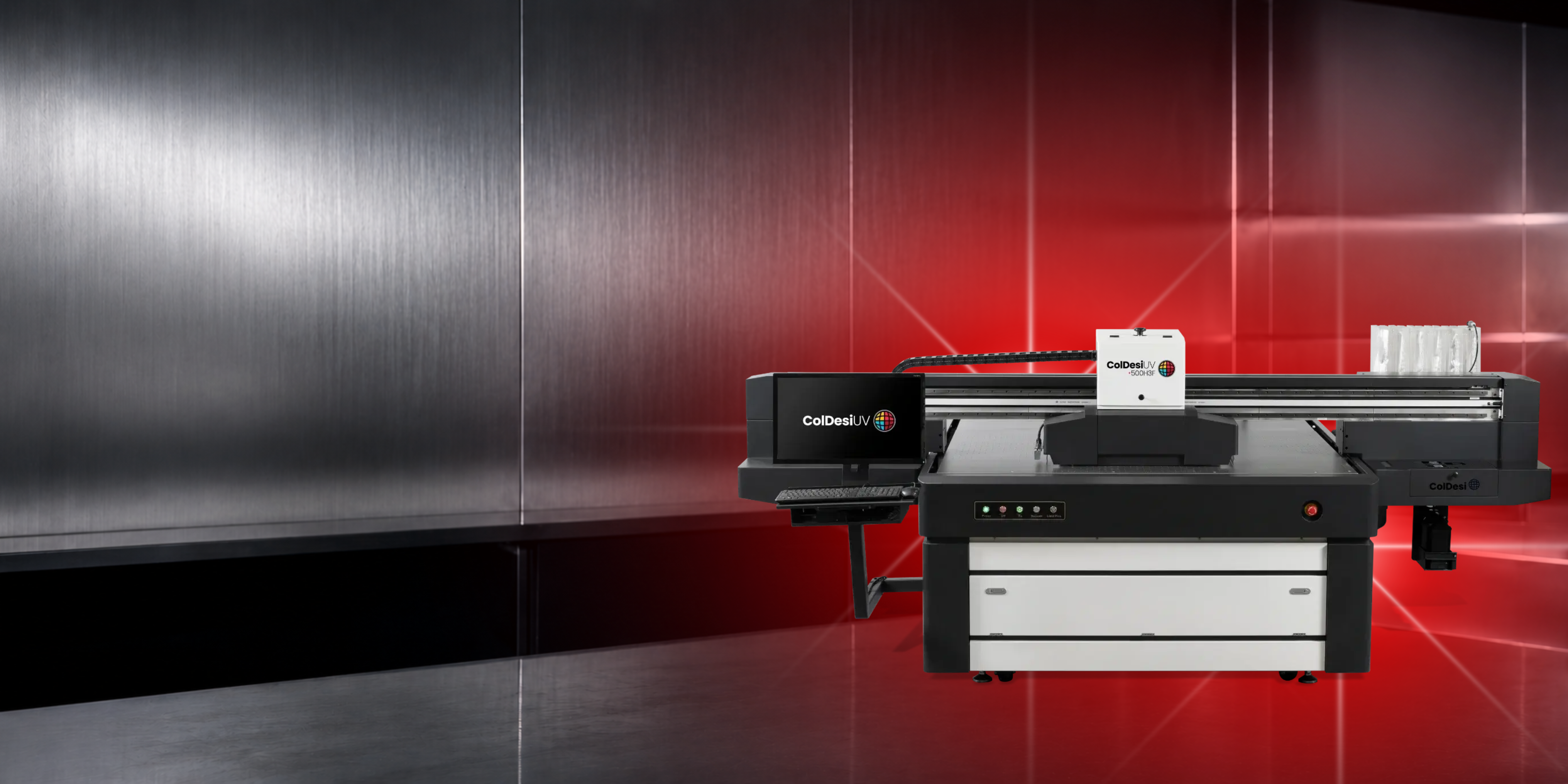

The ColDesi UV 500H3F is a production‑ready large‑format UV flatbed printer built for direct‑to‑object customisation on rigid substrates. With a 1600 × 1200mm print area and support for media up to 150mm thick, it’s designed for businesses bringing higher‑value UV work in‑house.
Large Format UV Printing, Built for Production
From rigid signage and display boards to acrylic, metal and ceramics, the UV 500H3F delivers vibrant colour and sharp detail at scale. CMYK is supported by White ink for dark or transparent materials, while Varnish adds gloss and tactile effects that help you sell premium finishes.
With a standard multi‑zone vacuum bed, four UV curing lamps and an ink warning system with White ink recirculation (WIMS), it’s built for reliable, repeatable output. Supplied with UK installation, training and ongoing support from YES Group, you can move into large‑format UV production with confidence.
Machine Specifications
|
Specification |
Details |
|
Machine Type |
UV LED flatbed printer (direct-to-object) |
|
Print Area |
Up to 1600 × 1200 mm |
|
Media Thickness |
Up to 150 mm |
|
Print Head |
3 × I3200 UI printheads |
|
Colour Configuration |
CMYK + White + Clear Varnish |
|
Curing System |
Quad (four) |
|
Vacuum Bed |
Standard (multi zone) |
|
Software |
ColDesi UV‑RIP |
|
Dimensions & Weight |
3310 × 2055 × 1467 mm; 984 kg |
|
Warranty |
2 years parts & labour (subject to yearly servicing) |

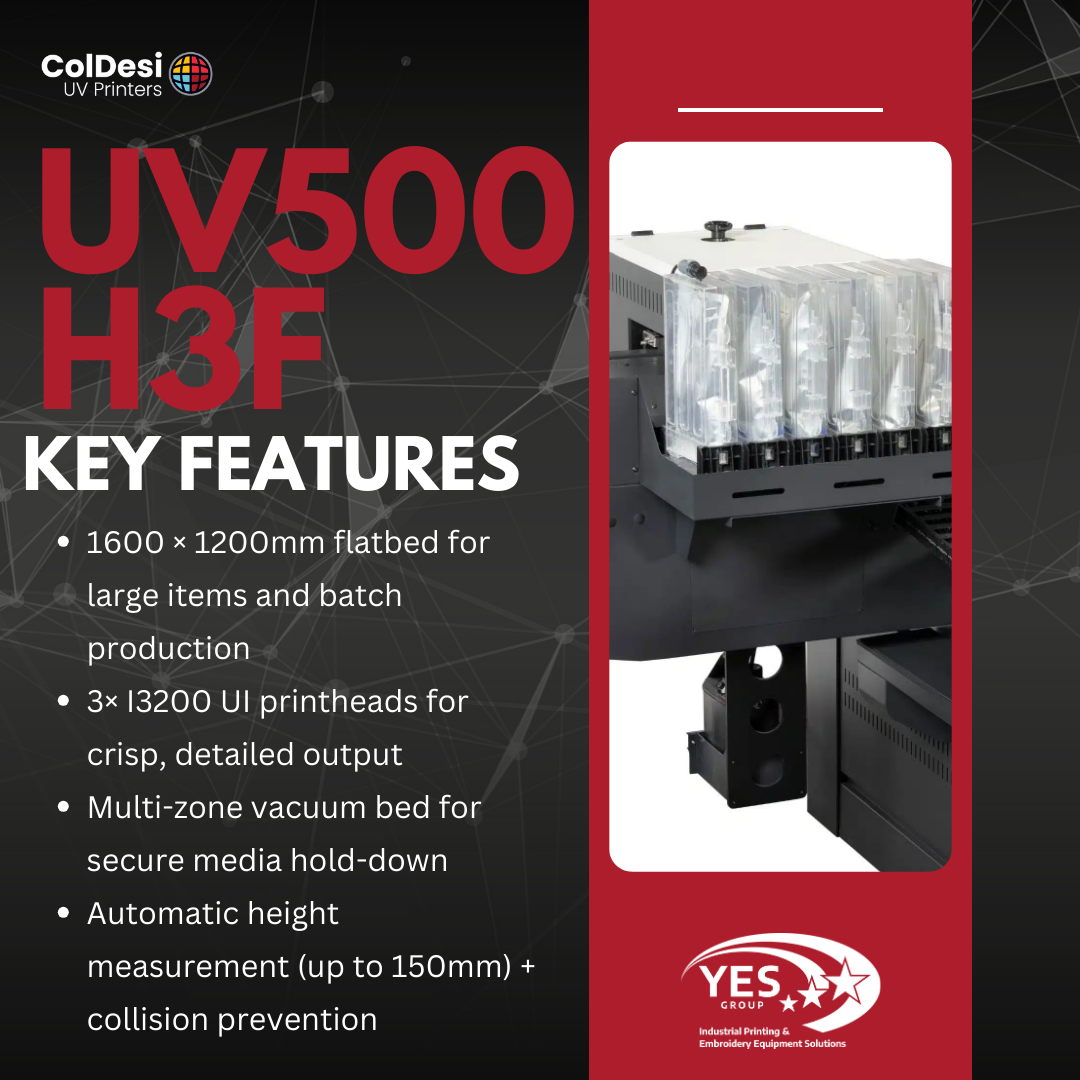

Features & Benefits
The ColDesi UV 500H3F is built to help you produce premium UV work efficiently:
- Bring large-format rigid printing in-house for faster turnaround
- Print thicker items up to 150mm to expand your product range
- Add White ink underprints and Varnish effects to increase margins
- Improve repeatability with stable vacuum hold‑down across the bed
- Scale batch production with UV curing designed for commercial workflow
About ColDesi
ColDesi designs professional UV printing systems built for practical, production-led workflow. Their flatbed range pairs vibrant VividBond inks with dependable engineering, helping businesses produce higher‑value direct‑to‑object prints with White ink support and varnish effects across a wide variety of rigid substrates.
What’s Included
When purchasing the ColDesi UV 500H3F from YES Group, you receive:
- ColDesi UV 500H3F UV flatbed printer with standard multi‑zone vacuum bed
- Startup Inks: (1) 750ml CMYK inks, (2) 750ml White + 750ml Clear, plus flush bags
- UV maintenance kit (wipes, maintenance solutions and cleaners)
- ColDesi UV‑RIP software + screen, keyboard and mouse (PC base excluded)
- Four UV curing lamps + ink warning system with White ink re‑circulation (WIMS)
- Training, support, installation and delivery (mainland UK)*
UK Support, Training & Finance Options
When you buy from YES Group, you benefit from:
- UK-based technical support and after-sales backup
- Straight-talking advice from UV print specialists before you buy

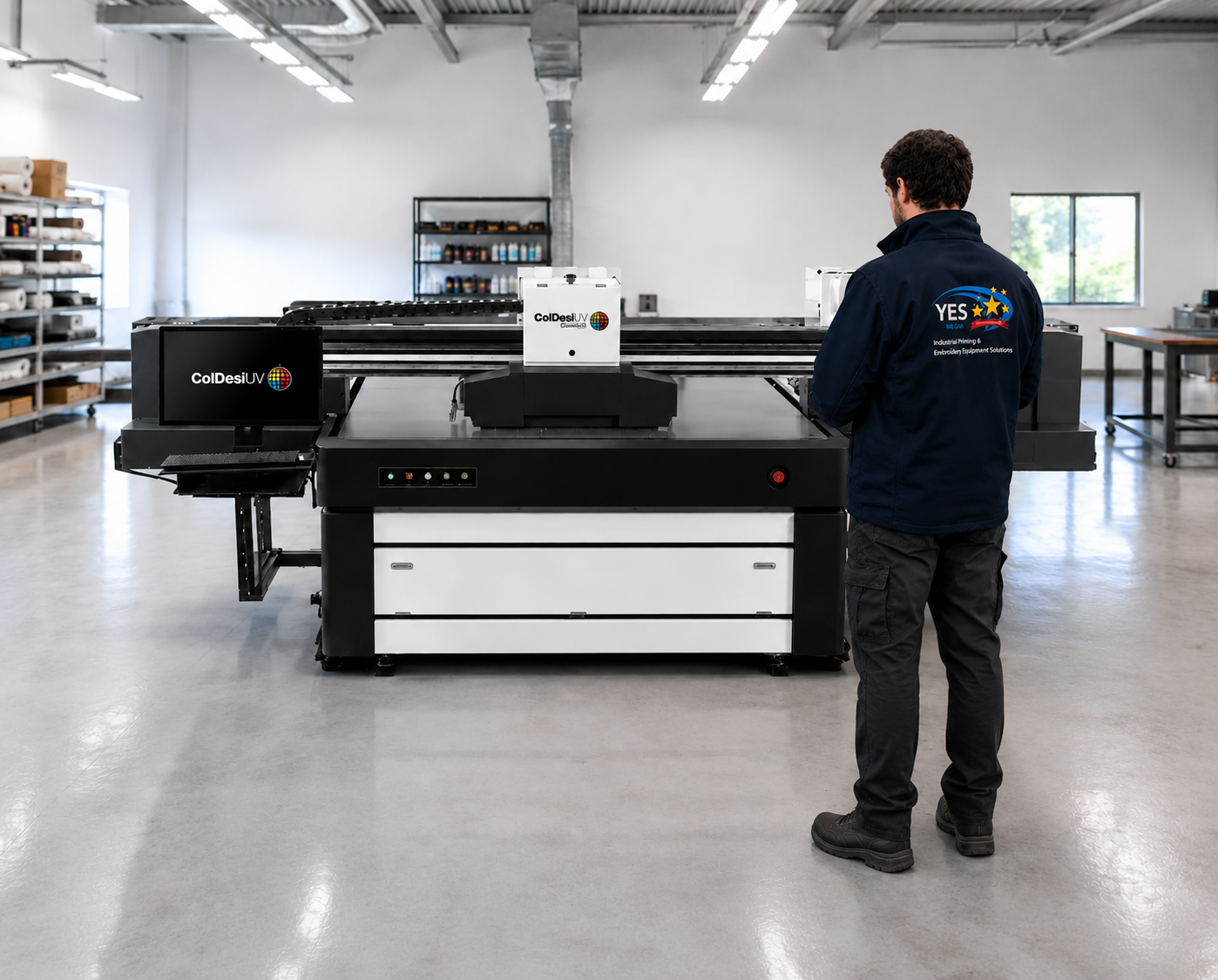

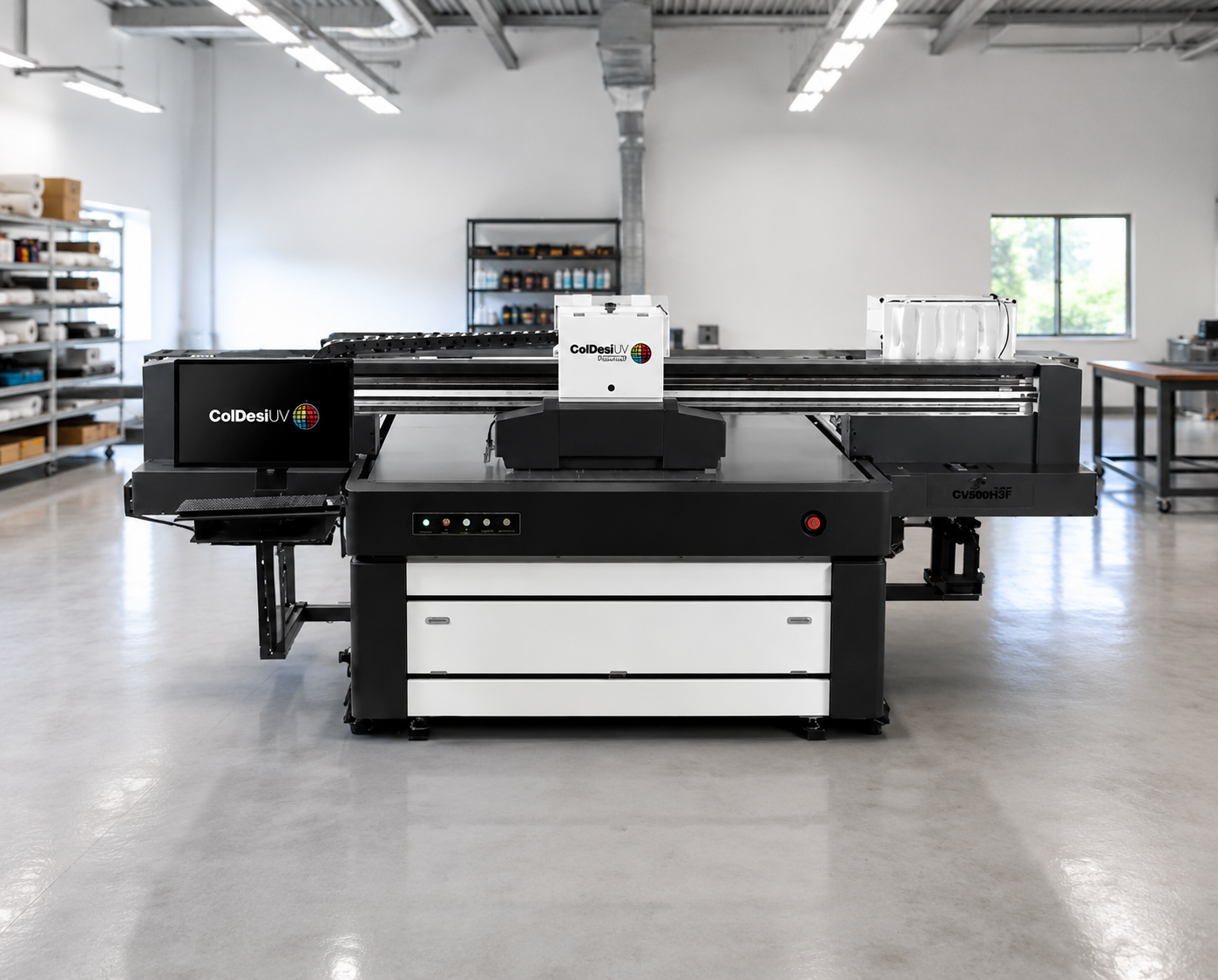

- On-site installation and training to get production running smoothly
- Flexible finance options through third parties (subject to status)
We support you before, during and after purchase to help you scale with confidence
Contact Us
If you’re unsure whether the ColDesi UV 500H3F is the right UV printer for your applications, we’re here to help.
Call 01623 863343 or email sales@yesltd.co.uk for expert guidance, samples and pricing.
About YES Group
YES Group supplies commercial print and textile equipment across the UK, helping businesses invest with clarity and confidence. With dependable installation, training and ongoing support, we make it easier to bring the right production capability in-house.
